Product detail

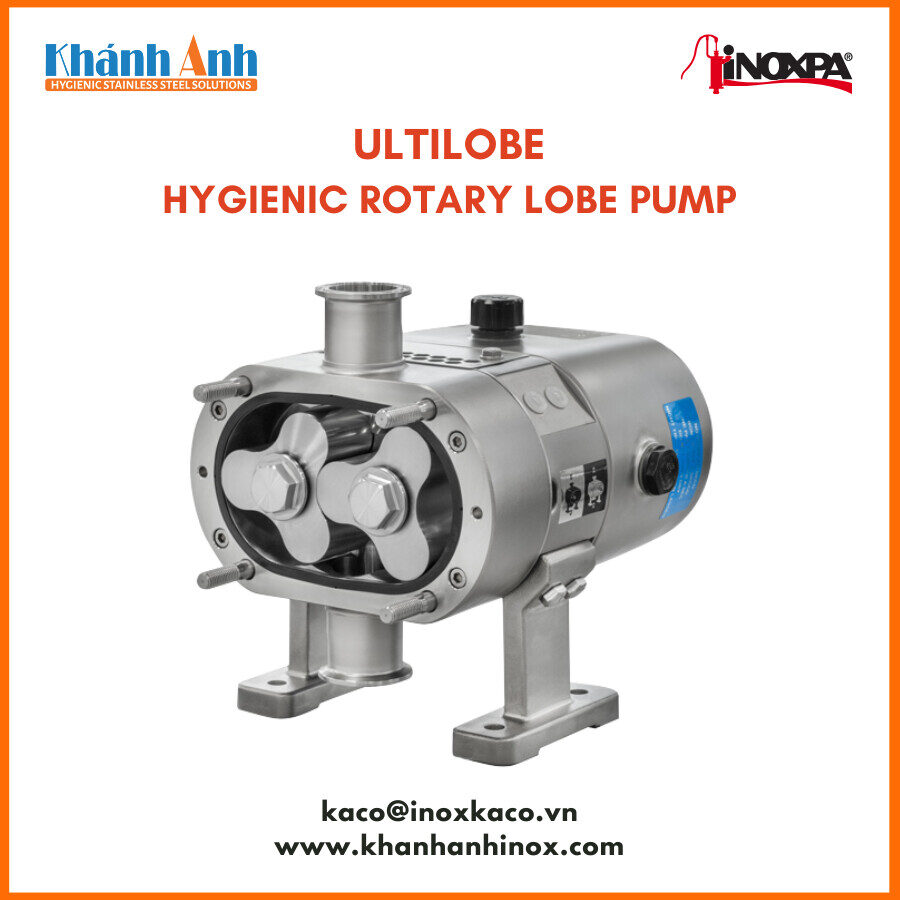

The ULTILOBE pump is a positive displacement rotary lobe pump with a hygienic design for installations in the dairy, food, beverage, cosmetics, pharmaceutical and fine chemical industries.
The pump is ideal for handling all kinds of fluids and for meeting filtering and bottling needs. The specially designed lobes mean products containing delicate solids can be pumped without being damaged.
Design and features
The ULTILOBE rotary lobe pump is a bare shaft pump.
It consists mainly of a pump casing and cover made from investment casting stainless steel and tri-lobe rotors.
The single mechanical seal is internal type, balanced, with hygienic design and can be fully disassembled from the front.
Materials
Parts in contact with the product 1.4404 (AISI 316L)
Bearing bracket 1.4307 (AISI 304L)
Gaskets in contact with the product EPDM
Mechanical seal
Type Internal, front disassembly
Rotating part Graphite (C) or Silicon carbide (SiC)
Stationary part Silicon carbide (SiC)
Gaskets EPDM
Surface finish
Internal Ra ≤ 0.8 μm
External Matte
Connections DIN 11851
Options
SiC/SiC mechanical seal.
Other types of seals are available in addition to the single mechanical seal: cooled mechanical seal (quench) and
double mechanical seal.
FPM gaskets.
Front or external pressure bypass.
Front heating chamber.
Wedge rotors.
Vertical nozzle bracket.
Clamp and SMS connections.
