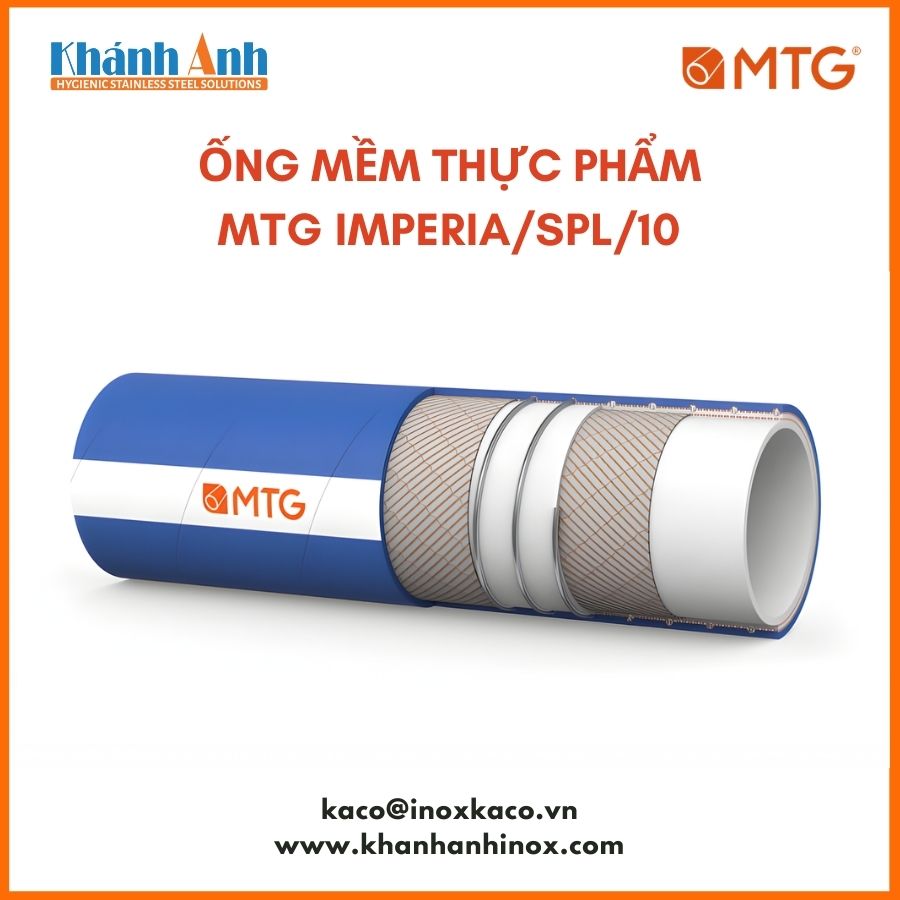

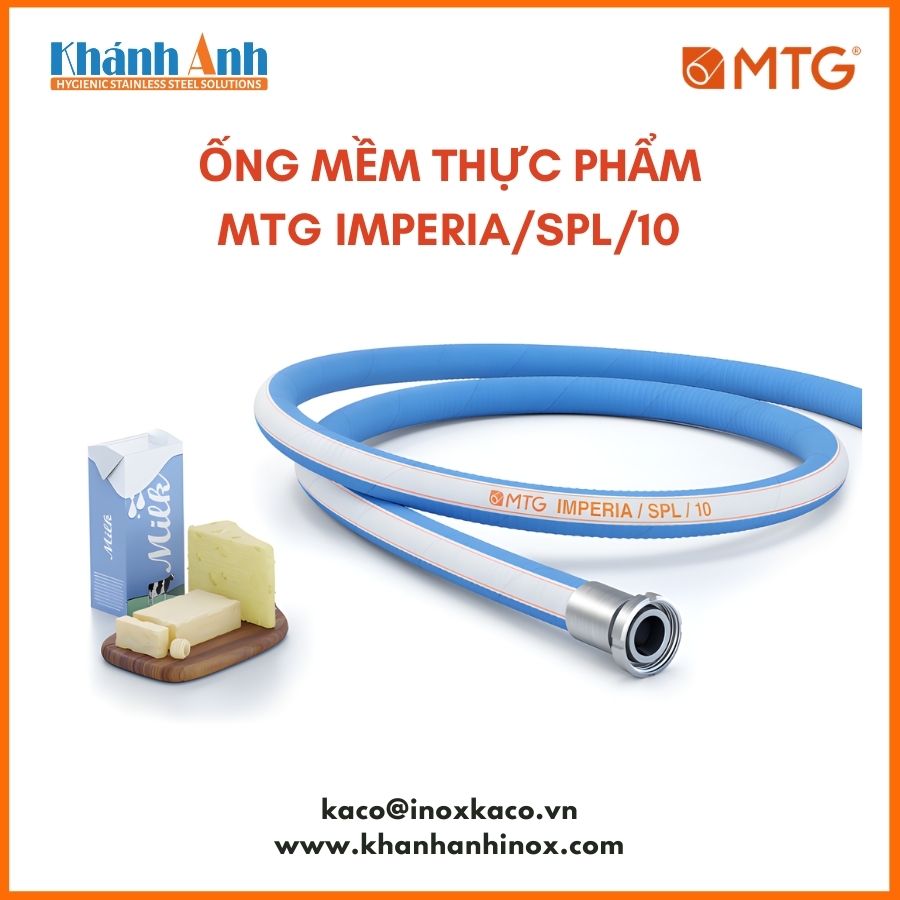

MTG IMPERIA/SPL/10 Food grade flexible hose for milk
Rubber hose specifically designed to convey milk and milk products, milk whey and fatty foodstuffs in general. Normally used in dairies, edible oil mills and food processing industries.
Contact:
Product detail
Rubber hose specifically designed to convey milk and milk products, milk whey and fatty foodstuffs in general.
Normally used in dairies, edible oil mills and food processing industries.
Suction and delivery hose.
Main benefits
The high-strength structure makes it perfect for unloading operations of milk and milk products, as well as for heavy-duty applications.
Hose in accordance with EC 1935/2004 and 2023/2006/EC (GMP).
The MTG production cycle is free from animal derived ingredients, phthalates, adipates and materials subject to restrictions acc. to EC 1907/2006 (REACH).
Non-plasticized hose.
Construcion
Tube
- NBR rubber (code NAB90), light colour, food quality, odourless and tasteless, mirror-smooth.
- Compliance: FDA Standards, 3-A Sanitary Standards n.18-03-Class II, BfR Recommendations (XXI Cat. 2), D.M. 21/03/73 and following amendments.
Reinforcements
- Plies of synthetic cord.
- Embedded steel helix wire.
Cover
- CR rubber, blue colour, abrasion and weather resistant, smooth, cloth finish.
- Good resistance to ageing and short contact with animal and vegetable fats.
Safety factors
- ≥ 3 times working pressure.
Temperatures
- From -20°C to +90°C depending on the product conveyed and on use.
Sterilization
- Please refer to the MTG cleaning and sterilization guidlines.
Fitting

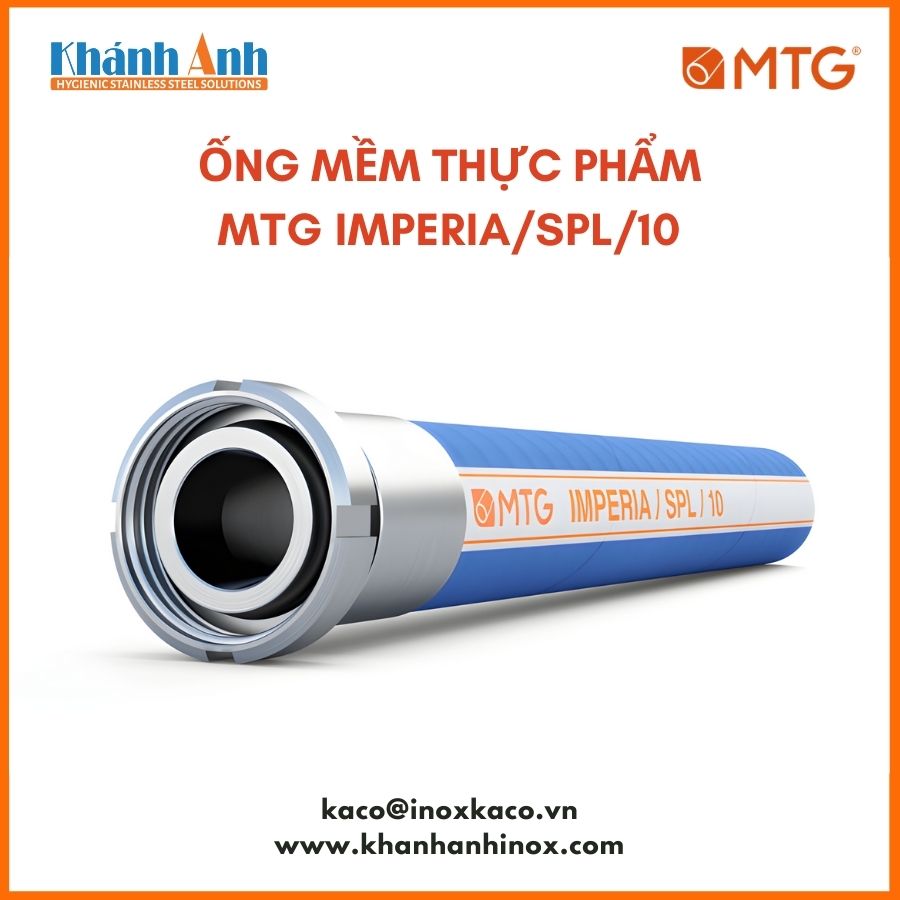

The hose may be supplied in application lengths, assembled with any kind of couplings (CLAMP, DIN 11851, etc.).

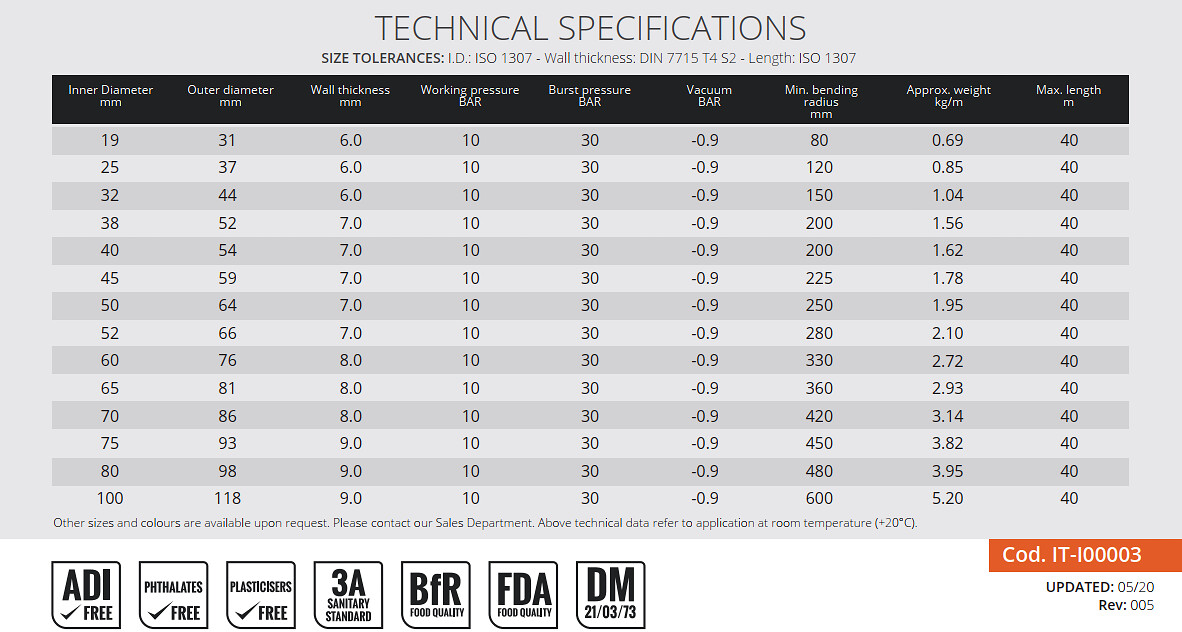

Technical specifications
Data sheet
